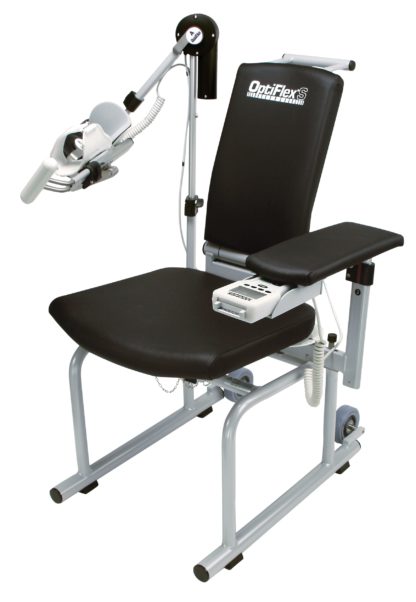

OptiFlex S Shoulder CPM.

OptiFlex S Shoulder CPM.

chattanooga

OptiFlex S Shoulder CPM. Designed to provide anatomical motion for the shoulder with enhanced patient comfort, compliance and more beneficial outcomes. Addresses full range of motion capabilities.

  • Easy-to-use hand control for storing treatment data on memory chip card
  • Fully synchronized motors allow treatment parameters to be customized to meet patient?s specific therapy protocols
  • Ergonomic rest for healthy arm and fully adjustable chair
  • Patented Universal left/right Shoulder design
  • Folds easily for transport/shipping
  • Includes patient data card and erasable pen
  • Lightweight design weighs 55 lbs (25 kg)
  • Two-year limited warranty



Category: Tag:

Description

Motor Control On/Off
Pause 0 – 30 seconds
Speed 0 – 100%
Timer 1 – 300 minutes
Warm-Up Mode 50% of programmed ROM
Synchronization On/Off
Reverse-On-Load 1 – 20
Therapy Run Time h : m
Patient Data Storage n/a
Adduction/Abduction 0° – 30° – 175°
Internal/External Rotation 90° – 0° – 90°
Flexion/Extension 0° – 30° – 175°
Horizontal Adduction/Abduction 0 – 0 – 125°
Unit Weight 55 lb (25 kg)
Shipping Weight 107 lb (48.5 kg)
Dimensions 34.4″ x 22.6″ x 22.8″ (87.5 cm x 57.5 cm x 58 cm)
Transport Size 14.6″ x 22.6″ x 22.8″ (37 cm x 57.5 cm x 58 cm)
Safety Tests CSA – 601-1-M90, UL – 2601-1
